Calculs
 Thermodynamique de la machine alternative
   (pour la période la plus active)
 Données utilisateur :
Alésage : 12.0 mm
Course : 13.0 mm
Nombre de cylindres : 2.0   Valeurs calculées :
Nombre d'effets : 2.0  Cylindrée : 5.881061447520093 cm3
Diamètre de la tige de piston : 3.0 mm Cylindrée corrigée (-volume tige de piston) : 5.739689778108552 cm3
Pression absolue (moyenne) : 3.7 b Pression effective : 2.7 b
   Température d'évaporation : 139.2916870676514 °C
Vitesse de rotation : 2000.0 tr/min Puissance indiquée (théorique) : 206.6288320119079 W
   Consommation volumique de vapeur : 11479.379556217104 cm3/min
   Masse volumique de la vapeur : 2.01 kg/m3
   Consommation de vapeur à la minute : 23.073552907996376 g/min
Durée de fonctionnement à pleine puissance : 10.0 min Consommation eau pendant le fonctionnement à pleine puissance : 230.73552907996375 cm3
   Chaleur latente de vaporisation 2141.59 kJ/kg
   Quantité de chaleur à fournir pendant le fonctionnement à pleine puissance : 494.1409017223596 kJ

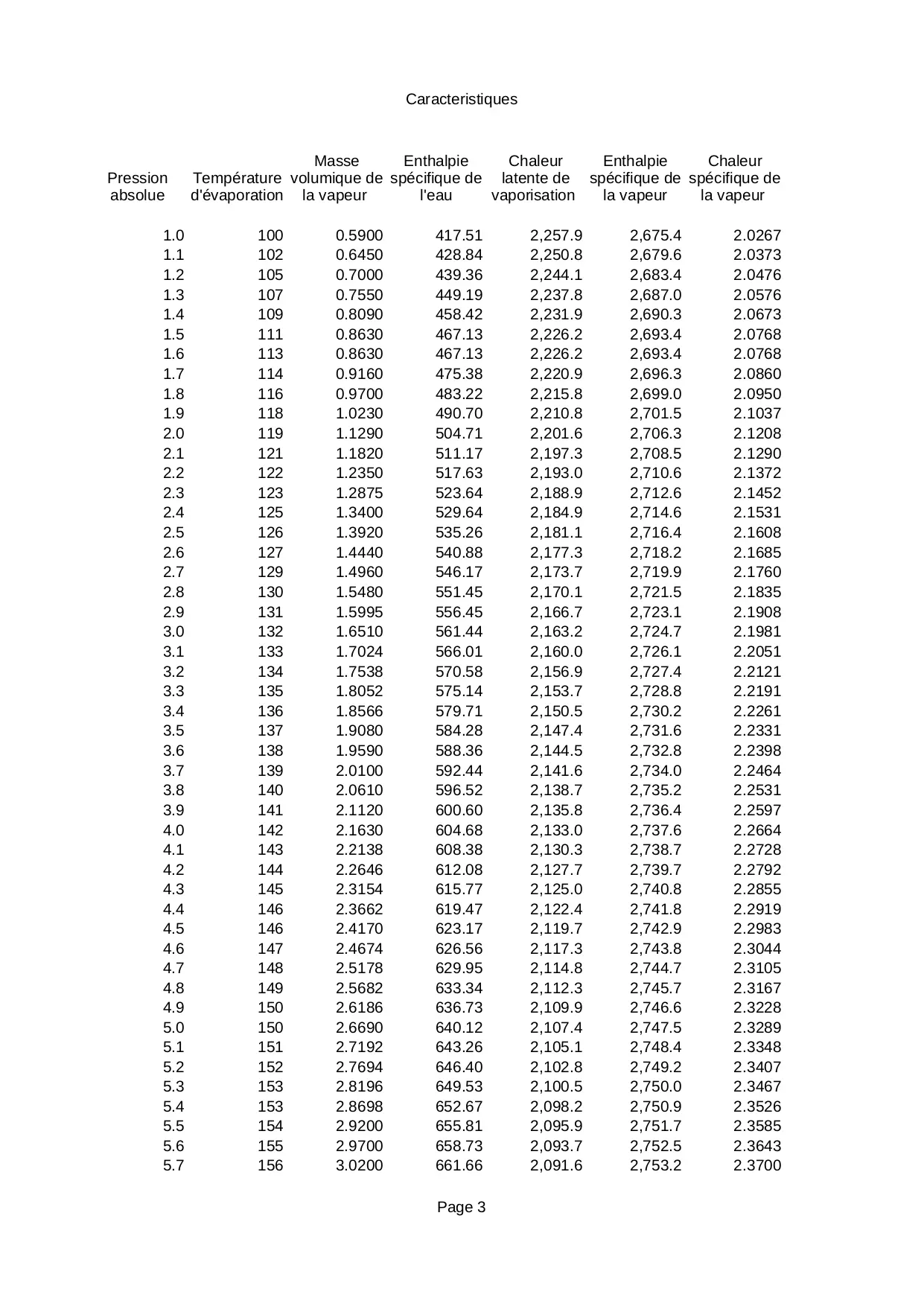

Caracteristiques

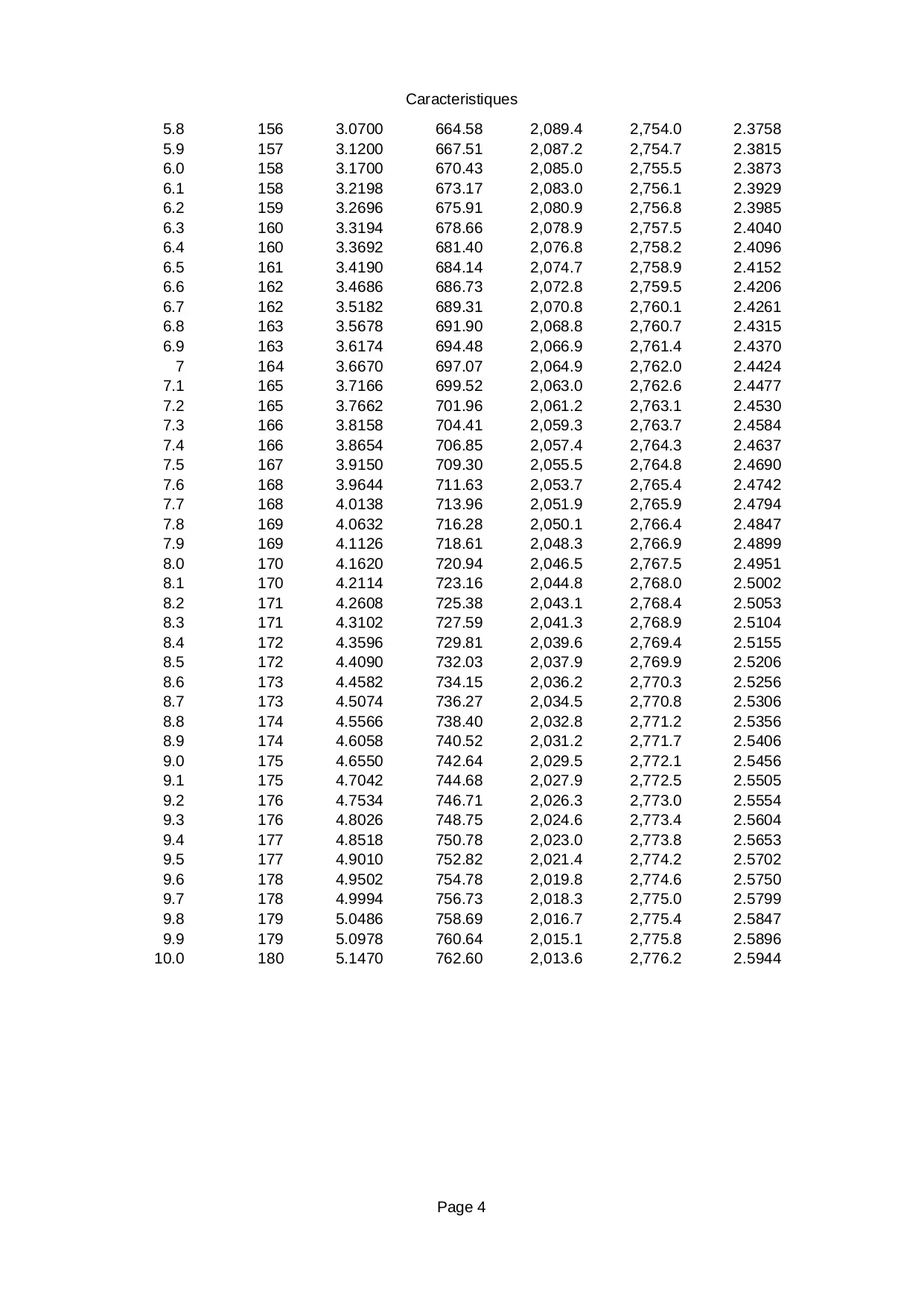

Pression absolue Température d'évaporation Masse volumique de la vapeur Enthalpie spécifique de l'eau Chaleur latente de vaporisation Enthalpie spécifique de la vapeur Chaleur spécifique de la vapeur
1.0 100.0 0.59 417.51 2257.92 2675.4300000000003 2.0267
1.1 102.43359113066674 0.645 428.84 2250.76 2679.6000000000004 2.0373
1.2 104.70795838365501 0.7 439.36 2244.08 2683.44 2.0476
1.3 106.84566390391075 0.755 449.19 2237.79 2686.98 2.0576
1.4 108.8646194826166 0.809 458.42 2231.86 2690.28 2.0673
1.5 110.77930308114327 0.863 467.13 2226.23 2693.36 2.0768
1.6 112.60159837140316 0.863 467.13 2226.23 2693.36 2.0768
1.7000000000000002 114.3413900990982 0.916 475.38 2220.87 2696.25 2.086
1.8 116.00699630660468 0.97 483.22 2215.75 2698.9700000000003 2.095
1.9 117.60548859440185 1.023 490.7 2210.84 2701.54 2.1037
2.0 119.14293372249433 1.129 504.71 2201.59 2706.3 2.1208
2.1 120.62457879471603 1.182 511.17 2197.285 2708.455 2.129
2.2 122.05499522975734 1.235 517.63 2192.98 2710.61 2.1372
2.3 123.43819212728768 1.2875 523.635 2188.945 2712.58 2.14515
2.4 124.77770656880679 1.34 529.64 2184.91 2714.5499999999997 2.1531000000000002
2.5 126.07667630162688 1.392 535.26 2181.105 2716.365 2.1608
2.6 127.3378988029421 1.444 540.88 2177.3 2718.1800000000003 2.1685
2.7 128.563879696648 1.496 546.165 2173.69 2719.855 2.176
2.8 129.75687276168017 1.548 551.45 2170.08 2721.5299999999997 2.1835
2.9 130.91891323745983 1.5995 556.445 2166.65 2723.0950000000003 2.1908
3.0 132.0518457396937 1.651 561.44 2163.22 2724.66 2.1981
3.1 133.1573478076534 1.7024 566.008 2160.046 2726.054 2.2051
3.2 134.23694988417327 1.7538 570.576 2156.872 2727.448 2.2121
3.3 135.29205236240583 1.8052000000000001 575.144 2153.698 2728.8419999999996 2.2191
3.4 136.32394020503773 1.8566 579.712 2150.524 2730.236 2.2261
3.5 137.3337955422936 1.908 584.28 2147.35 2731.63 2.2331
3.6 138.32270857746374 1.959 588.36 2144.47 2732.83 2.23976
3.7 139.2916870676514 2.01 592.44 2141.59 2734.03 2.24642
3.8 140.24166459905572 2.061 596.52 2138.71 2735.23 2.25308
3.9 141.17350783750737 2.112 600.6 2135.83 2736.43 2.25974
4.0 142.08802290397617 2.163 604.68 2132.95 2737.6299999999997 2.2664
4.1 142.98596099972534 2.2138 608.378 2130.302 2738.6800000000003 2.27278
4.2 143.86802338543757 2.2646 612.076 2127.654 2739.73 2.27916
4.3 144.7348658020113 2.3154 615.774 2125.006 2740.7799999999997 2.28554
4.4 145.58710240707208 2.3662 619.472 2122.358 2741.83 2.29192
4.5 146.4253092899748 2.417 623.17 2119.71 2742.88 2.2983000000000002
4.6 147.2500276187315 2.4674 626.56 2117.252 2743.812 2.30442
4.7 148.0617664645174 2.5178000000000003 629.95 2114.794 2744.7439999999997 2.31054
4.8 148.86100534290148 2.5682 633.34 2112.336 2745.676 2.31666
4.9 149.6481965054832 2.6186 636.73 2109.878 2746.608 2.32278
5.0 150.42376701101094 2.669 640.12 2107.42 2747.54 2.3289
5.1 151.1881206011606 2.7192 643.258 2105.116 2748.374 2.33482
5.2 151.94163940284318 2.7694 646.396 2102.812 2749.2079999999996 2.3407400000000003
5.3 152.68468547609083 2.8196 649.534 2100.508 2750.042 2.34666
5.4 153.4176022241622 2.8698 652.672 2098.204 2750.876 2.35258
5.5 154.14071568043929 2.92 655.81 2095.9 2751.71 2.3585000000000003
5.6 154.85433568491396 2.97 658.734 2093.726 2752.46 2.36426
5.7 155.55875696152697 3.02 661.658 2091.552 2753.21 2.3700200000000002
5.8 156.25426010629891 3.07 664.582 2089.378 2753.96 2.3757800000000002
5.9 156.94111249504166 3.12 667.506 2087.204 2754.71 2.38154
6.0 157.61956911843984 3.17 670.43 2085.03 2755.46 2.3873
6.1 158.28987335142148 3.2198 673.172 2082.97 2756.142 2.39288
6.2 158.95225766297435 3.2696 675.914 2080.91 2756.8239999999996 2.39846
6.3 159.6069442718999 3.3194 678.656 2078.85 2757.506 2.40404
6.4 160.2541457534101 3.3692 681.398 2076.79 2758.188 2.40962
6.5 160.89406560095924 3.419 684.14 2074.73 2758.87 2.4152
6.6 161.52689874724783 3.4686 686.726 2072.768 2759.494 2.42064
6.7 162.15283204793732 3.5182 689.312 2070.806 2760.118 2.42608
6.8 162.77204473125715 3.5678 691.898 2068.844 2760.742 2.43152
6.9 163.384708816374 3.6174 694.484 2066.882 2761.366 2.43696
7.0 163.9909895031119 3.667 697.07 2064.92 2761.9900000000002 2.4424
7.1 164.59104553536494 3.7166 699.516 2063.042 2762.558 2.44772
7.2 165.18502954032178 3.7662 701.962 2061.164 2763.126 2.45304
7.3 165.77308834542407 3.8158000000000003 704.408 2059.286 2763.694 2.45836
7.4 166.35536327480415 3.8654 706.854 2057.408 2764.2619999999997 2.46368
7.5 166.9319904267881 3.915 709.3 2055.53 2764.83 2.469
7.6 167.50310093390948 3.9644 711.628 2053.73 2765.358 2.47422
7.7 168.06882120675007 4.0138 713.956 2051.93 2765.886 2.47944
7.8 168.62927316281 4.0632 716.284 2050.13 2766.414 2.48466
7.9 169.18457444150525 4.1126 718.612 2048.33 2766.942 2.48988
8.0 169.73483860629844 4.162 720.94 2046.53 2767.4700000000003 2.4951
8.1 170.2801753348825 4.2114 723.158 2044.796 2767.954 2.5002
8.2 170.82069059826196 4.2608 725.376 2043.062 2768.438 2.5053
8.3 171.3564868295073 4.3102 727.594 2041.328 2768.922 2.5104
8.4 171.88766308289382 4.3596 729.812 2039.594 2769.406 2.5155000000000003
8.5 172.4143151840811 4.409 732.03 2037.86 2769.89 2.5206
8.6 172.93653587193612 4.4582 734.152 2036.186 2770.3379999999997 2.5256
8.7 173.45441493255635 4.5074000000000005 736.274 2034.512 2770.786 2.5306
8.8 173.96803932600673 4.5565999999999995 738.396 2032.838 2771.234 2.5356
8.9 174.47749330624373 4.6058 740.518 2031.164 2771.682 2.5406
9.0 174.9828585346655 4.655 742.64 2029.49 2772.13 2.5456
9.1 175.48421418769385 4.7042 744.676 2027.872 2772.5480000000002 2.55052
9.2 175.98163705876271 4.7534 746.712 2026.254 2772.966 2.55544
9.3 176.47520165506245 4.8026 748.748 2024.636 2773.384 2.56036
9.4 176.96498028936205 4.8518 750.784 2023.018 2773.802 2.56528
9.5 177.4510431672096 4.901 752.82 2021.4 2774.2200000000003 2.5702
9.6 177.93345846978977 4.9502 754.776 2019.832 2774.608 2.57504
9.7 178.412292432697 4.9994 756.732 2018.264 2774.996 2.57988
9.8 178.88760942086583 5.0486 758.688 2016.696 2775.384 2.58472
9.9 179.3594719998833 5.0978 760.644 2015.128 2775.772 2.58956
10.0 179.82794100389228 5.147 762.6 2013.56 2776.16 2.5944000000000003
