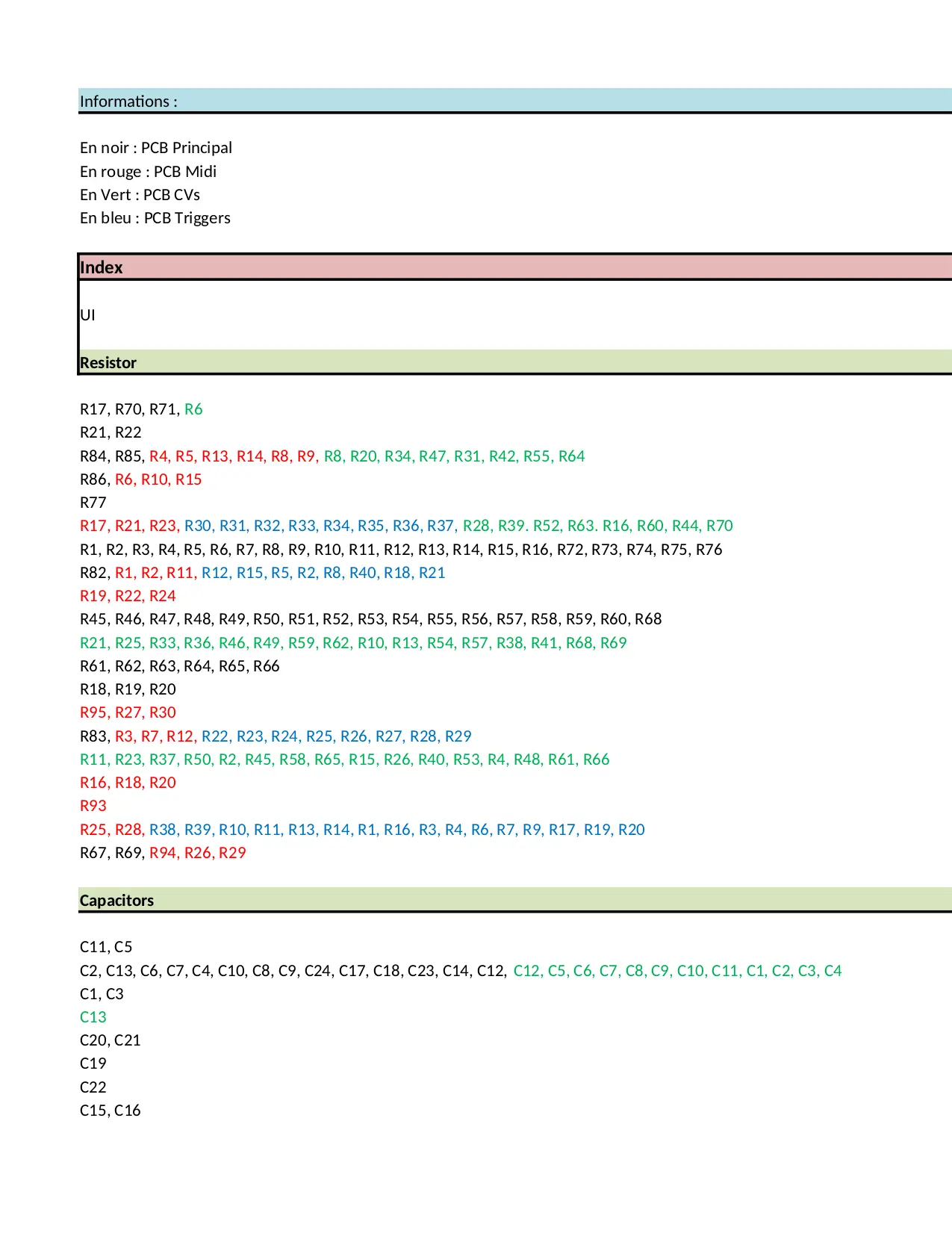

En noir : PCB Principal
En rouge : PCB Midi
En Vert : PCB CVs
En bleu : PCB Triggers

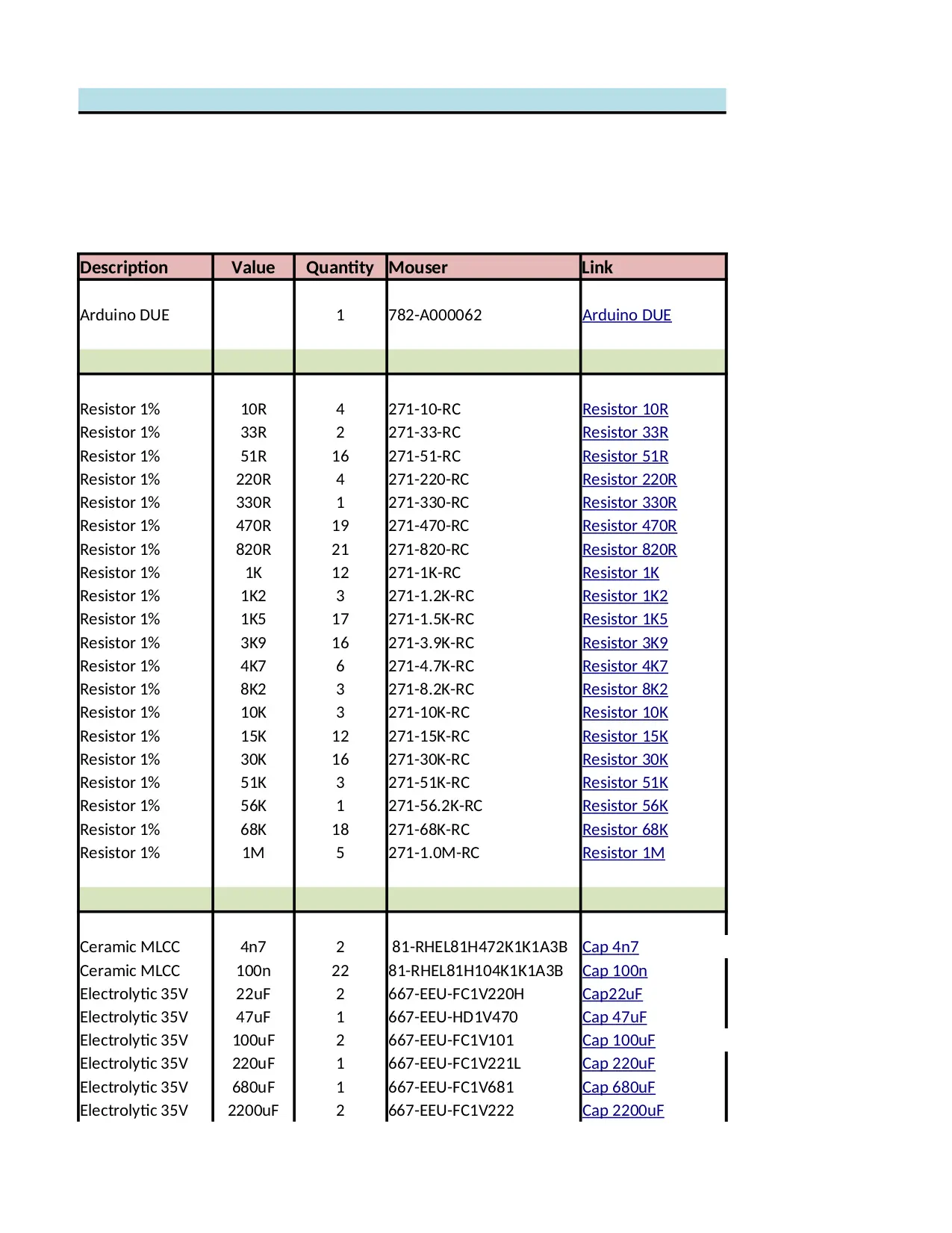

Index Description Value Quantity Mouser Link Infos

UI Arduino DUE  1 782-A000062  Arduino DUE

Resistor

"R17  R70  R71  R6" Resistor 1% 10R 4 271-10-RC Resistor 10R
"R21  R22" Resistor 1% 33R 2 271-33-RC  Resistor 33R
"R84  R85  R4  R5  R13  R14  R8  R9  R8  R20  R34  R47  R31  R42  R55  R64" Resistor 1% 51R 16 271-51-RC  Resistor 51R
"R86  R6  R10  R15" Resistor 1% 220R 4 271-220-RC  Resistor 220R
R77 Resistor 1% 330R 1 271-330-RC  Resistor 330R
"R17  R21  R23  R30  R31  R32  R33  R34  R35  R36  R37  R28  R39. R52  R63. R16  R60  R44  R70" Resistor 1% 470R 19 271-470-RC  Resistor 470R
"R1  R2  R3  R4  R5  R6  R7  R8  R9  R10  R11  R12  R13  R14  R15  R16  R72  R73  R74  R75  R76" Resistor 1% 820R 21 271-820-RC  Resistor 820R
"R82  R1  R2  R11  R12  R15  R5  R2  R8  R40  R18  R21" Resistor 1% 1K 12 271-1K-RC  Resistor 1K
"R19  R22  R24" Resistor 1% 1K2 3 271-1.2K-RC  Resistor 1K2
"R45  R46  R47  R48  R49  R50  R51  R52  R53  R54  R55  R56  R57  R58  R59  R60  R68" Resistor 1% 1K5 17 271-1.5K-RC  Resistor 1K5
"R21  R25  R33  R36  R46  R49  R59  R62  R10  R13  R54  R57  R38  R41  R68  R69" Resistor 1% 3K9 16 271-3.9K-RC  Resistor 3K9
"R61  R62  R63  R64  R65  R66" Resistor 1% 4K7 6 271-4.7K-RC  Resistor 4K7
"R18  R19  R20" Resistor 1% 8K2 3 271-8.2K-RC  Resistor 8K2
"R95  R27  R30" Resistor 1% 10K 3 271-10K-RC  Resistor 10K
"R83  R3  R7  R12  R22  R23  R24  R25  R26  R27  R28  R29" Resistor 1% 15K 12 271-15K-RC  Resistor 15K
"R11  R23  R37  R50  R2  R45  R58  R65  R15  R26  R40  R53  R4  R48  R61  R66" Resistor 1% 30K 16 271-30K-RC  Resistor 30K
"R16  R18  R20" Resistor 1% 51K 3 271-51K-RC Resistor 51K
R93 Resistor 1% 56K 1 271-56.2K-RC  Resistor 56K
"R25  R28  R38  R39  R10  R11  R13  R14  R1  R16  R3  R4  R6  R7  R9  R17  R19  R20" Resistor 1% 68K 18 271-68K-RC  Resistor 68K
"R67  R69  R94  R26  R29" Resistor 1% 1M 5 271-1.0M-RC  Resistor 1M

Capacitors

"C11  C5" Ceramic MLCC 4n7 2  81-RHEL81H472K1K1A3B   Cap 4n7 Lead spacing 5mm (0.2in)
"C2  C13  C6  C7  C4  C10  C8  C9  C24  C17  C18  C23  C14  C12  C12  C5  C6  C7  C8  C9  C10  C11  C1  C2  C3  C4" Ceramic MLCC 100n 22 81-RHEL81H104K1K1A3B  Cap 100n Lead spacing 5mm (0.2in)
"C1  C3" Electrolytic 35V 22uF 2 667-EEU-FC1V220H  Cap22uF Lead spacing 2.5mm Dia.5mm
C13 Electrolytic 35V 47uF 1 667-EEU-HD1V470 Cap 47uF Lead spacing 2.5mm Dia.5mm
"C20  C21" Electrolytic 35V 100uF 2 667-EEU-FC1V101  Cap 100uF Lead spacing 3.5mm Dia. 8mm
C19 Electrolytic 35V 220uF 1 667-EEU-FC1V221L Cap 220uF Lead spacing 3.5mm Dia. 8mm
C22 Electrolytic 35V 680uF 1 667-EEU-FC1V681 Cap 680uF Lead spacing 5mm Dia. 12.5mm
"C15  C16" Electrolytic 35V 2200uF 2 667-EEU-FC1V222  Cap 2200uF Lead spacing 7.5mm Dia. 16mm

Inductor

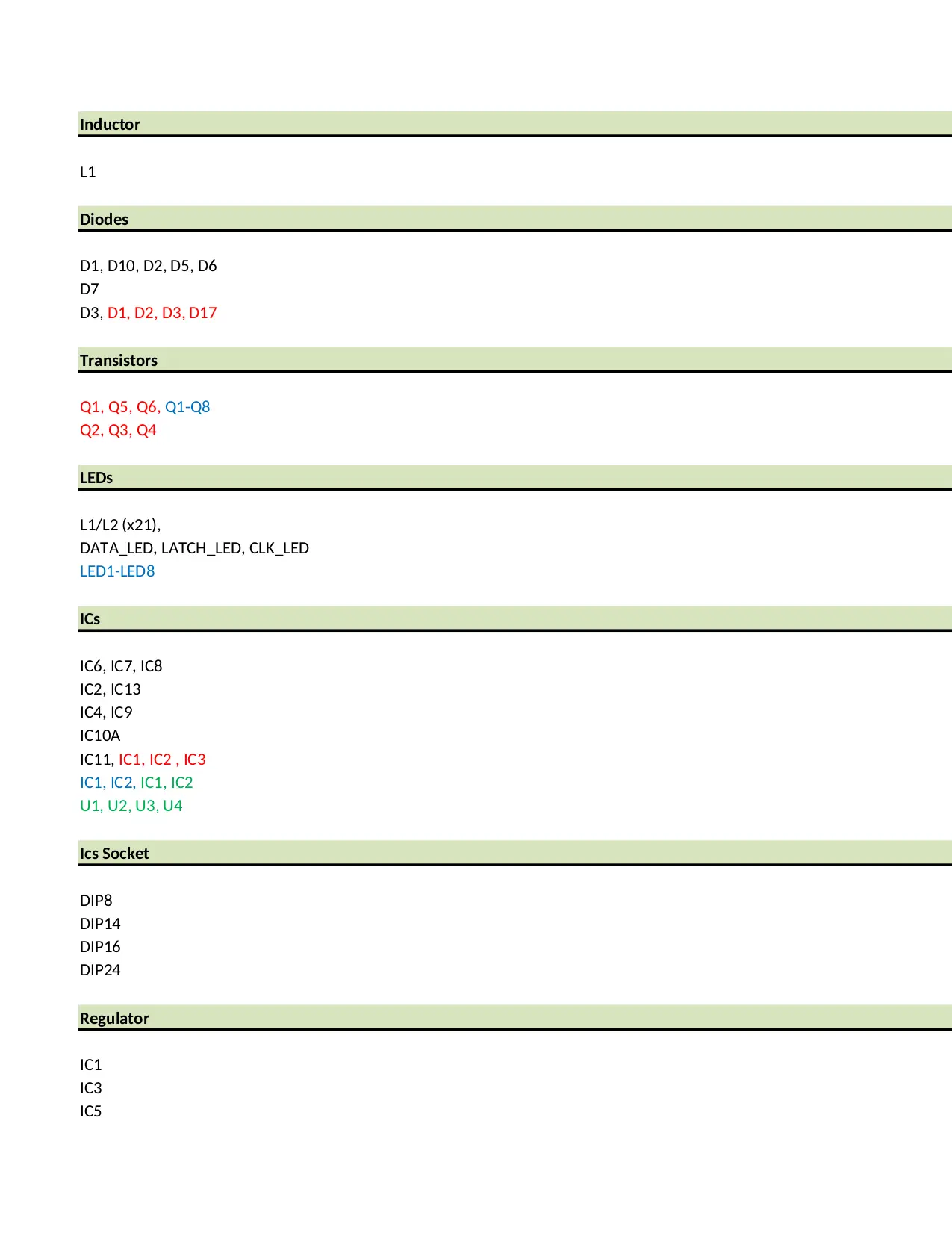

L1  330u 1   ?

Diodes

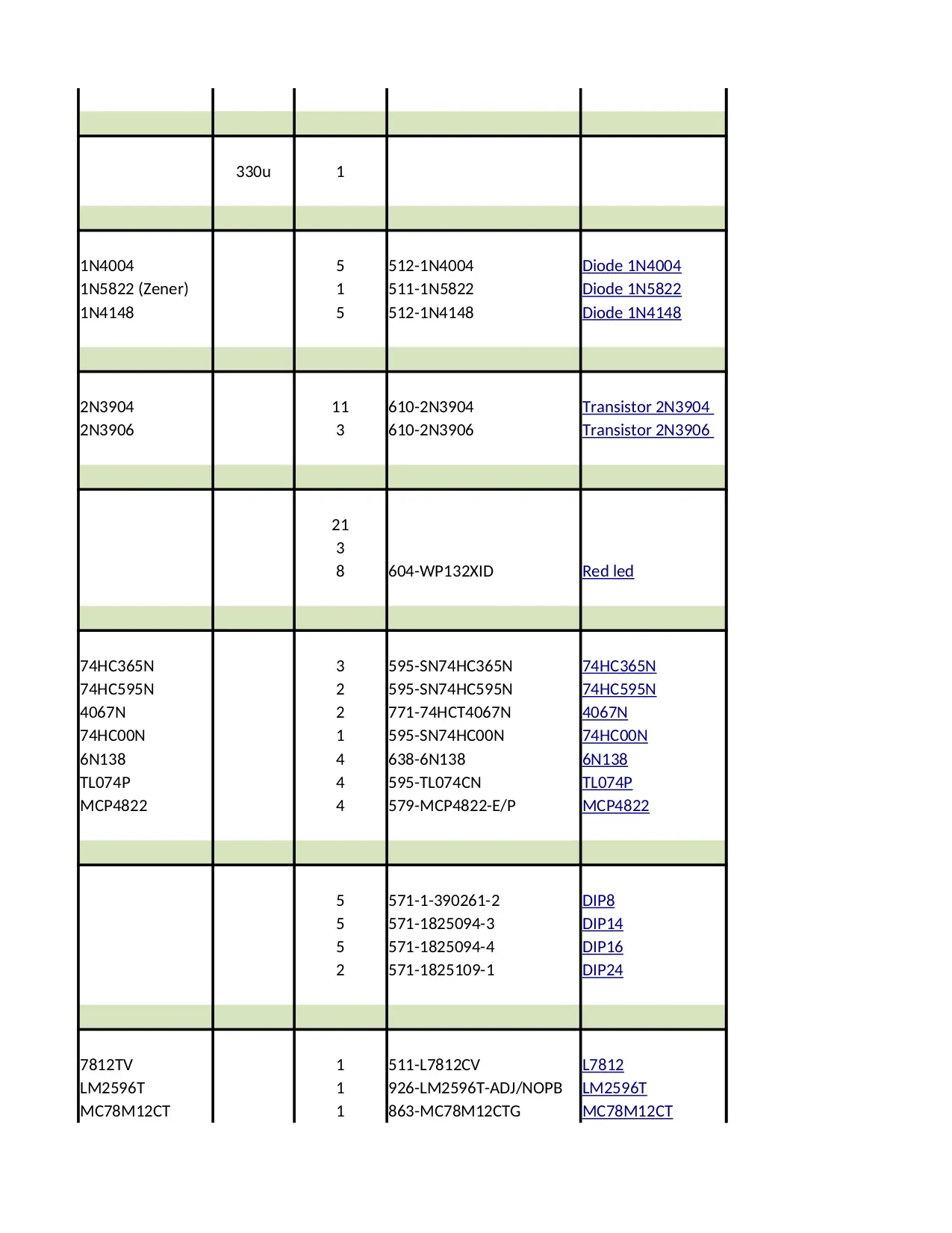

"D1  D10  D2  D5  D6" 1N4004  5 512-1N4004  Diode 1N4004
D7 1N5822 (Zener)  1 511-1N5822  Diode 1N5822
"D3  D1  D2  D3  D17" 1N4148  5 512-1N4148  Diode 1N4148 ?

Transistors

"Q1  Q5  Q6  Q1-Q8" 2N3904  11 610-2N3904  Transistor 2N3904
"Q2  Q3  Q4" 2N3906  3 610-2N3906  Transistor 2N3906

LEDs

"L1/L2 (x21)  "   21   Included in the push buttons
"DATA_LED  LATCH_LED  CLK_LED"   3   ?
LED1-LED8   8 604-WP132XID  Red led Red color

ICs

"IC6  IC7  IC8" 74HC365N  3 595-SN74HC365N  74HC365N Texas Instruments
"IC2  IC13" 74HC595N  2 595-SN74HC595N  74HC595N Texas Instruments
"IC4  IC9" 4067N  2 771-74HCT4067N 4067N NXP
IC10A 74HC00N  1 595-SN74HC00N  74HC00N Texas Instruments
"IC11  IC1  IC2   IC3" 6N138  4 638-6N138  6N138 Everlight
"IC1  IC2  IC1  IC2" TL074P  4 595-TL074CN  TL074P Texas Instruments
"U1  U2  U3  U4" MCP4822  4 579-MCP4822-E/P  MCP4822 Microchip

Ics Socket

DIP8   5 571-1-390261-2 DIP8
DIP14   5 571-1825094-3  DIP14
DIP16   5 571-1825094-4  DIP16
DIP24   2 571-1825109-1  DIP24

Regulator

IC1 7812TV  1 511-L7812CV L7812 TO-220
IC3 LM2596T  1 926-LM2596T-ADJ/NOPB  LM2596T TO-220
IC5 MC78M12CT  1 863-MC78M12CTG  MC78M12CT TO-220

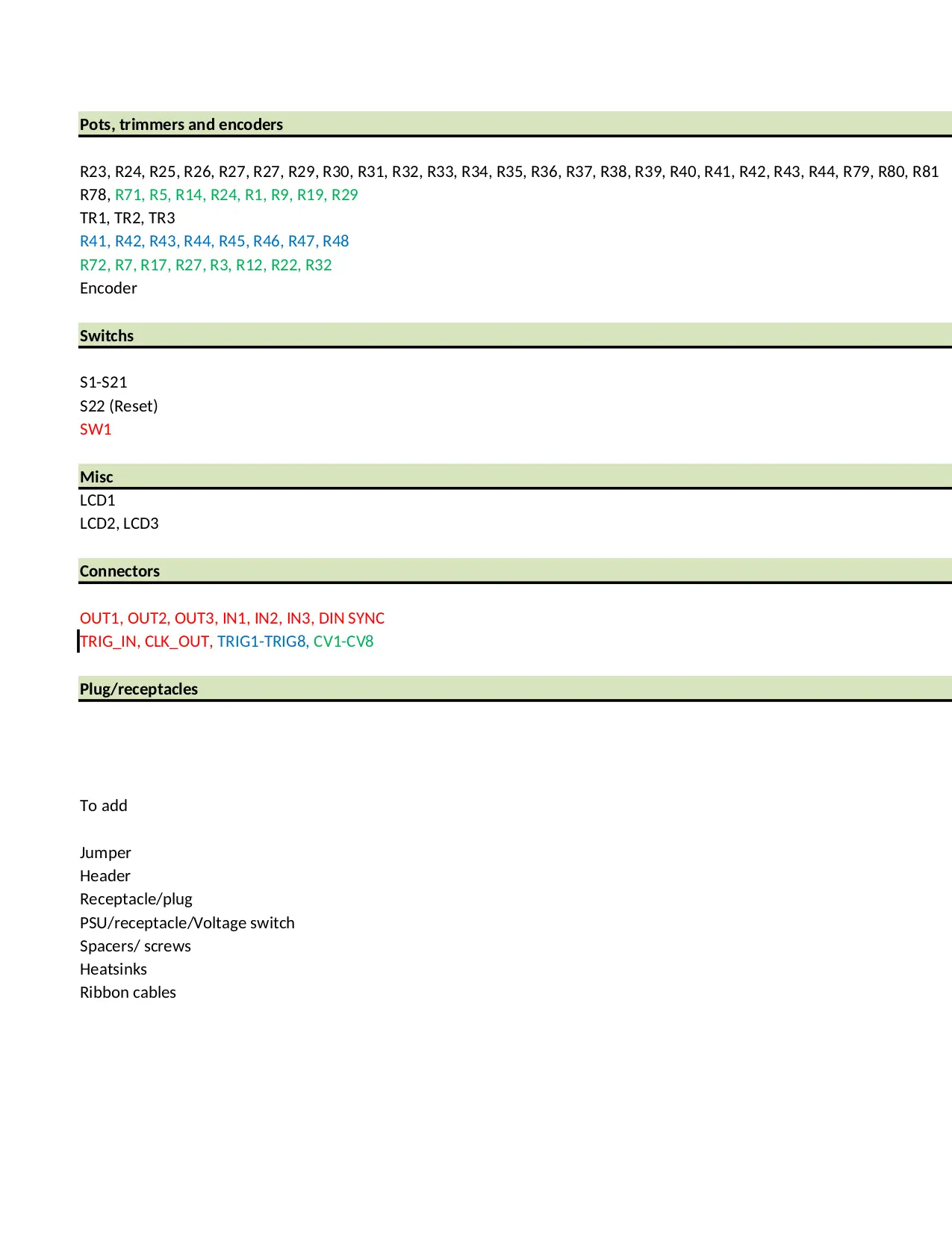

"Pots  trimmers and encoders"

"R23  R24  R25  R26  R27  R27  R29  R30  R31  R32  R33  R34  R35  R36  R37  R38  R39  R40  R41  R42  R43  R44  R79  R80  R81"  25K 25 667-EVU-F2LFL3B24   Potentiometer
"R78  R71  R5  R14  R24  R1  R9  R19  R29" Trimmer 10K 9 858-64YR10KLF  Trimmer 10K
"TR1  TR2  TR3" Trimmer  3 652-3306F-1-103  Trimmer ??? ? 10K ? Contrast
"R41  R42  R43  R44  R45  R46  R47  R48" Trimmer 50K 8 858-64YR50KLF  Trimmer 50K
"R72  R7  R17  R27  R3  R12  R22  R32" Trimmer 100K 8 858-64PR100KLF  Trimmer 100K
Encoder Encoder  1 652-PEC16-4220FS0012 Encoder

Switchs

S1-S21   21   Include leds
S22 (Reset)   1   Does not include led
SW1 PT-22f01  1

Misc
LCD1 20X4  1  LCD 20X4 ERM2004
"LCD2  LCD3" 40X4  2  LCD 40X4 ERM4004

Connectors

"OUT1  OUT2  OUT3  IN1  IN2  IN3  DIN SYNC" Midi DIN 5  7
"TRIG_IN  CLK_OUT  TRIG1-TRIG8  CV1-CV8" Jack 6.35  18

Plug/receptacles

To add

Jumper
Header
Receptacle/plug
PSU/receptacle/Voltage switch
Spacers/ screws
Heatsinks
Ribbon cables
