Model
Audio Model Part Name List which is repaired at FTEB
TEN No TOYOTA No Specification
122000-1050**** 86120-53030 D4/CDCH/3in1
122000-1060**** 86120-53040 D0/CDCH/3in1
122000-2790**** 86120-53041 IS200 H/U w/o Amp.
122000-2791**** 86120-53090 D0/3in1/CDCH
122000-2800**** 86120-53031 IS200 H/U w/ Amp.
122000-3690**** 86120-53100 D4/3in1/CDCH
122000-4320**** 86120-53140 IS200/300 LHD
122000-4330**** 86120-53150 IS200/300 RHD
122000-1460**** 86120-52020 D4LMUE/D/CH-W-RDS
122000-1461**** 86120-52021 D4LMUE/D/CH-W-RDS
122000-1470**** 86120-52010 S2LMUE/D/CH-W
NMSC

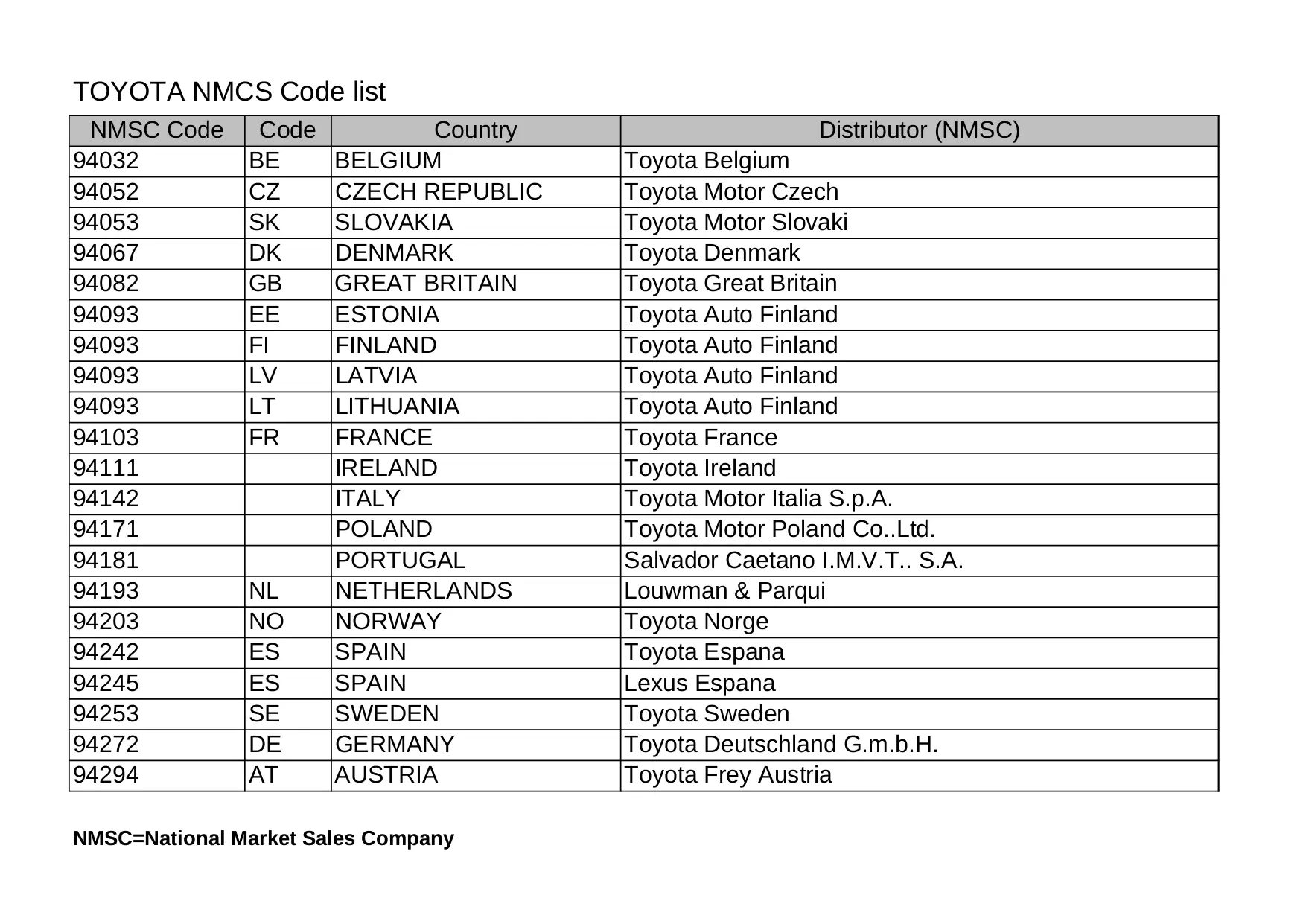

TOYOTA NMCS Code list
NMSC Code Code Country Distributor (NMSC)
94032.0 BE BELGIUM Toyota Belgium
94052.0 CZ CZECH REPUBLIC Toyota Motor Czech
94053.0 SK SLOVAKIA Toyota Motor Slovaki
94067.0 DK DENMARK Toyota Denmark
94082.0 GB GREAT BRITAIN Toyota Great Britain
94093.0 EE ESTONIA Toyota Auto Finland
94093.0 FI FINLAND Toyota Auto Finland
94093.0 LV LATVIA Toyota Auto Finland
94093.0 LT LITHUANIA Toyota Auto Finland
94103.0 FR FRANCE Toyota France
94111.0  IRELAND Toyota Ireland
94142.0  ITALY Toyota Motor Italia S.p.A.
94171.0  POLAND Toyota Motor Poland Co..Ltd.
94181.0  PORTUGAL Salvador Caetano I.M.V.T.. S.A.
94193.0 NL NETHERLANDS Louwman & Parqui
94203.0 NO NORWAY Toyota Norge
94242.0 ES SPAIN Toyota Espana
94245.0 ES SPAIN Lexus Espana
94253.0 SE SWEDEN Toyota Sweden
94272.0 DE GERMANY Toyota Deutschland G.m.b.H.
94294.0 AT AUSTRIA Toyota Frey Austria
NMSC=National Market Sales Company

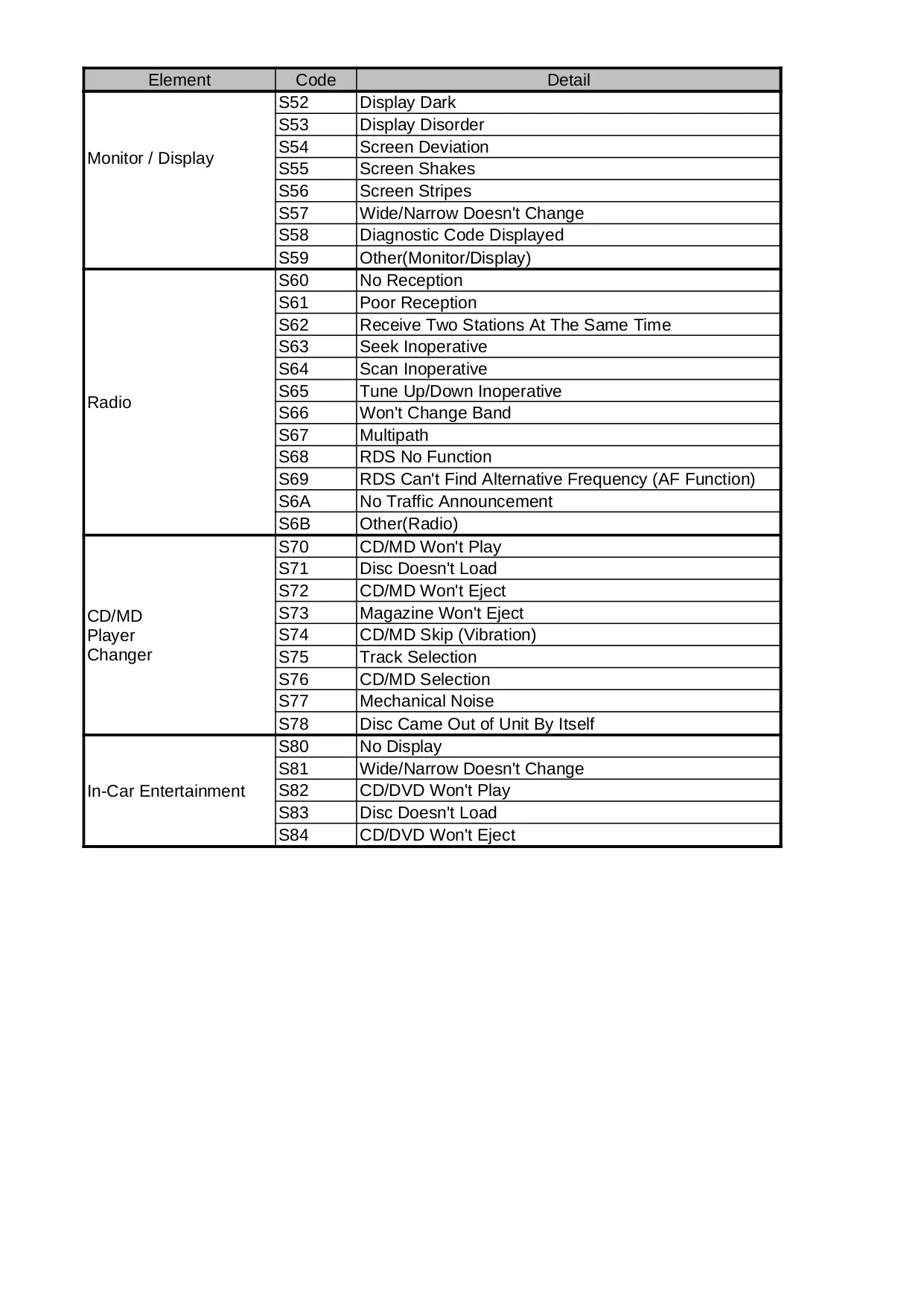

Symptom(New)
AROF Symptom Code (New Version)
Element Code Detail
Power - Sound S01 Absolutely No Power / Will Not Turn On
 S02 Fuse Blows
 S03 No Sound
 S04 Low Sound
 S05 Distortion
 S06 Cuts Out
 S07 Will Not Turn Off
 S08 Won't Change System
Face Panel S10 Dust Cover Inoperative
 S11 No Illumination
 S12 No Display
 S13 Segments Missing
 S14 Wrong Display
 S15 Knob Switch
 S16 Damage
 S17 Other(Face Panel)
Navigation S20 Won't Accept CD-ROM
 S21 CD-ROM Won't Eject
 S22 Wrong Indication of Map
 S23 Map Does Not Change(Frozen)
 S24 Cursor Rotates
 S25 Cursor Skips
 S26 GPS Mark Does Not Appear
 S27 Voice Navigation Inoperative
 S28 Wrong Voice Navigation
 S29 Switch Won't Work
 S2A Inoperative Due To Scratch/stain CD/DVD
 S2B No Boot Up
 S2C Unable to Read Map Data
 S2D Other (Navigation)
Function S30 Balance Inoperative
 S31 Fader Inoperative
 S32 Loudness Inoperative
 S33 Noise
 S34 Won't Change Function
 S35 Other Function Inoperative
 S36 Mute Inoperative
Cassette Player S40 Cassette Won't Play
 S41 Poor Sound
 S42 FF/REW
 S43 Mechanical Noise
 S44 Tape Speed Unstable
 S45 Eats Tape
 S46 Damages Tape
 S47 Tape Won't Eject
 S48 Won't Accept Tape
 S49 Auto Reverse
 S4A Dolby
Monitor / Display S50 No Display
 S51 Display Light
 S52 Display Dark
 S53 Display Disorder
 S54 Screen Deviation
 S55 Screen Shakes
 S56 Screen Stripes
 S57 Wide/Narrow Doesn't Change
 S58 Diagnostic Code Displayed
 S59 Other(Monitor/Display)
Radio S60 No Reception
 S61 Poor Reception
 S62 Receive Two Stations At The Same Time
 S63 Seek Inoperative
 S64 Scan Inoperative
 S65 Tune Up/Down Inoperative
 S66 Won't Change Band
 S67 Multipath
 S68 RDS No Function
 S69 RDS Can't Find Alternative Frequency (AF Function)
 S6A No Traffic Announcement
 S6B Other(Radio)
CD/MD Player Changer S70 CD/MD Won't Play
 S71 Disc Doesn't Load
 S72 CD/MD Won't Eject
 S73 Magazine Won't Eject
 S74 CD/MD Skip (Vibration)
 S75 Track Selection
 S76 CD/MD Selection
 S77 Mechanical Noise
 S78 Disc Came Out of Unit By Itself
In-Car Entertainment S80 No Display
 S81 Wide/Narrow Doesn't Change
 S82 CD/DVD Won't Play
 S83 Disc Doesn't Load
 S84 CD/DVD Won't Eject
AROF
AUDIO / NAVI REPAIR ORDER FORM
WARRANTY          ISSUE DATE (DD/MM/YY):                 Issue No. :  :
□ IN    □ EXCHANGE     SIGNATURE:
□ OUT    □ REPAIR     NAME (spell out) :
DEALER INFORMATION          Phone No.:
DLR CODE/DLR NAME:          REPAIR ORDER NO.       PART NO.        SERIAL No.:
                         SUPPLIER MODEL REF.
          VEHICLE MODEL       VIN/FRAME NO.             MILEAGE/KM
          PURCHASE DATE :     DD MM YY  CUSTOMER CLAIM DATE (DD/MM/YY):          DATE REMOVED (DD/MM/YY):
CUSTOMER COMPLAINT ANALYSIS
A. TROUBLE IN        : □ WHOLE UNIT      □ LW  □ AM  □ FM  □ RDS  □ CD/MD CHANGER     □ CD/MD
         □ NAVIGATION      □ DISPLAY UNIT     □ EQUALIZER     □ TAPE PLAYER     □ ECU
         □ OTHER   (                        )
B. TROUBLE OCCURS        : □ ALWAYS      □ SOMETIMES    → (  _______TIMES/DAY   _______TIMES/MONTH）
         □ TEMPERATURE     (  _____℃  _____゜F）      □ DRY  □ HUMID   □ RAIN   □ ALL WEATHER
         □ ENGINE RUNNING      □ ENGINE OFF    □ MOVING   → (VEHICLE SPEED ________KM/H  MPH)
SYMPTOM
 POWER - SOUND           FACE PANEL            NAVIGATION
01 □ ABSOLUTELY NO POWER         10.0 □ DUST COVER INOPERATIVE          20.0 □ WON'T ACCEPT CD ROM
02 □ FUSE BLOWS         11.0 □ NO ILLUMINATION          21.0 □ CD ROM WON'T EJECT
03 □ NO SOUND         12.0 □ NO DISPLAY          22.0 □ WRONG INDICATION OF MAP
04 □ LOW SOUND         13.0 □ SEGMENTS MISSING          23.0 □ MAP DOES NOT CHANGE (FROZEN)
05 □ DISTORTION         14.0 □ WRONG DISPLAY          24.0 □ CURSOR ROTATES
06 □ CUTS OUT         15.0 □ KNOB SWITCH          25.0 □ CURSOR SKIPS
07 □ WILL NOT TURN OFF         16.0 □ DAMAGE          26.0 □ GPS MARK DOES NOT APPEAR
08 □ WON'T CHANGE SYSTEM         17.0 □ OTHER          27.0 □ VOICE NAVIGATION INOPERATIVE
                       28.0 □ WRONG VOICE NAVIGATION
 FUNCTION           CASSETTE PLAYER           29.0 □ SWITCH WON'T WORK
30.0 □ BALANCE INOPERATIVE         40.0 □ CASSETTE WON'T PLAY          2A □ INOPERATIVE DUE TO SCRATCH/STAIN CD/DVD
31.0 □ FADER INOPERATIVE         41.0 □ POOR SOUND          2B □ NO BOOT UP
32.0 □ LOUDNESS INOPERATIVE         42.0 □ FF/REW          2C □ UNABLE TO READ MAP DATA
33.0 □ NOISE         43.0 □ MECHANICAL NOISE          2D □ OTHER
34.0 □ WON'T CHANGE FUNCTION         44.0 □ TAPE SPEED UNSTABLE
35.0 □ OTHER FUNCTION INOPERATIVE         45.0 □ EATS TAPE           MONITOR/DISPLAY
36.0 □ MUTE INOPERATIVE         46.0 □ DAMAGES TAPE          50.0 □ NO DISPLAY
           47.0 □ TAPE WON'T EJECT          51.0 □ DISPLAY LIGHT
 RADIO          48.0 □ WON'T ACCEPT TAPE          52.0 □ DISPLAY DARK
60 □ NO RECEPTION         49.0 □ AUTO REVERSE          53.0 □ DISPLAY DISORDER
61 □ POOR RECEPTION         4A □ DOLBY          54.0 □ SCREEN DEVIATION
62 □ RECEIVE TWO STATIONS                     55.0 □ SCREEN SHAKES
  AT THE SAME TIME          CD/MD PLAYER/CHANGER           56.0 □ SCREEN STRIPES
63 □ SEEK INOPERATIVE         70.0 □ CD/MD WON'T PLAY          57.0 □ WIDE/NARROW DOESN'T CHANGE
64 □ SCAN INOPERATIVE         71.0 □ DISC DOESN'T LOAD          58.0 □ DIAGNOSTIC CODE DISPLAYED
65 □ TUNE UP/DOWN INOPERATIVE         72.0 □ CD/MD WON'T EJECT          59.0 □ OTHER
66 □ WON'T CHANGE BAND         73.0 □ MAGAZINE WON'T EJECT
67 □ MULTIPATH         74.0 □ CD/MD SKIP (VIBRATION)           IN-CAR ENTERTAINMENT
68 □ RDS NO FUNCTION         75.0 □ TRACK SELECTION          80.0 □ NO DISPLAY
69 □ RDS CAN'T FIND ALTERNATIVE         76.0 □ CD/MD SELECTION          81.0 □ WIDE/NARROW DOESN'T CHANGE
  FREQUENCY (AF FUNCTION)         77.0 □ MECHANICAL NOISE          82.0 □ CD/DVD WON'T PLAY
6A □ NO TRAFFIC ANNOUNCEMENT         78.0 □ DISC CAME OUT OF UNIT BY ITSELF          83.0 □ DISC DOESN'T LOAD
6B □ OTHER                     84.0 □ CD/DVD WON'T EJECT
CUSTOMER COMPLAINT IN DETAIL:
DIAGNOSIS CHECK RESULT (PHYSICAL ADDRESS - LOGICAL ADDRESS - DTC)   Example: 190-62-45
            ***  Please fill in where appropriate !  ***
 DEFECTIVE UNIT SHIPPING INFORMATION                   REPAIRED UNIT SHIPPING INFORMATION
DEALER        DISTRIBUTOR         SERVICE STATION           DISTRIBUTOR     DEALER
UNIT SENT    UNIT RECEIVED     UNIT SENT     UNIT RECEIVED     UNIT SENT     UNIT RECEIVED     UNIT SENT    UNIT RECEIVED
DD/MM/YY    DD/MM/YY     DD/MM/YY     DD/MM/YY     DD/MM/YY     DD/MM/YY     DD/MM/YY    DD/MM/YY
 ※This is the original sheet for attachment when you send the defective unit. Take a copy for your file.
