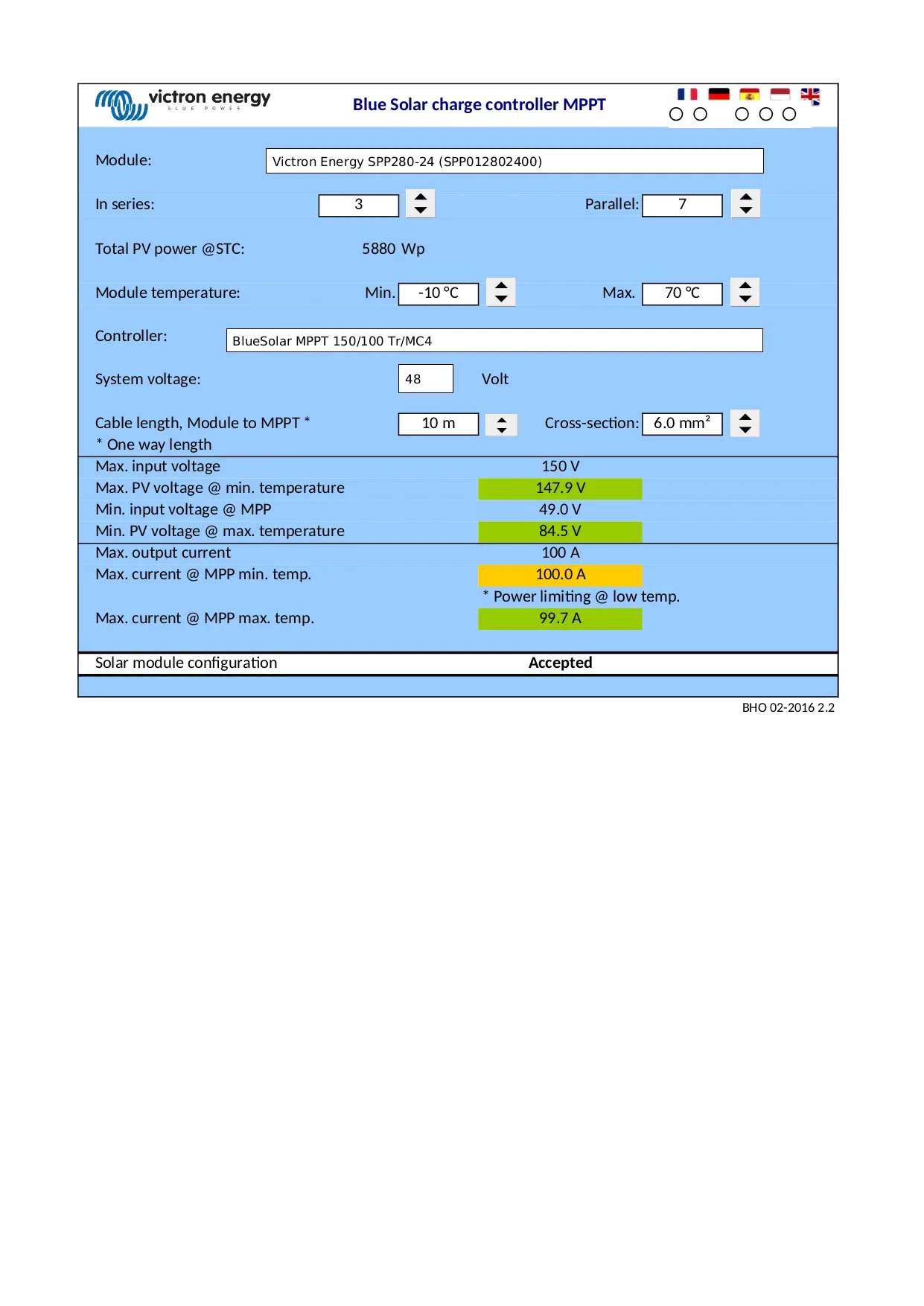

Form
   Blue Solar charge controller MPPT      Input voltage window        Charge current window
       5.0
 Module:  17.0
 In series:  3.0  Parallel: 7.0
 Total PV power @STC:  5880.0 Wp
    15.0  0.0
 Module temperature:  Min. -10.0 Max. 70.0    2.5
         12.0 4.0
 Controller:  11.0      24.0 6.0
         36.0 10.0
 System voltage:   4.0 Volt    48.0 16.0
          25.0
 Cable length  Module to MPPT *   10.0 Cross-section: 6.0 3.0   35.0
 * One way length
 Max. input voltage    150.0
 Max. PV voltage @ min. temperature    147.90942
 Min. input voltage @ MPP    49.0
 Min. PV voltage @ max. temperature    84.47569593666667
 Max. output current    100.0
 Max. current @ MPP min. temp.    100.0
     * Power limiting @ low temp.
 Max. current @ MPP max. temp.    99.69620683957989
 Solar module configuration    Accepted Accepted NOT accepted
       BHO 02-2016 2.2
Are the solar modules covered with snow many periods a year?       No  0
Example locations with expected temperatures:      Min. Max.
Flat on mobile home  all year (poor ventilation)      0.0 70.0
Flat on mobile home  only summer (poor ventilation)      15.0 70.0
Flat on boat (poor ventilation)      10.0 65.0
Pitched on boat (good ventilation)      5.0 60.0
Pitched roof in warm region (good ventilation)      5.0 70.0
Pitched roof in average region (good ventilation)      0.0 65.0
Pitched roof on mountain (good ventilation)      -5.0 60.0

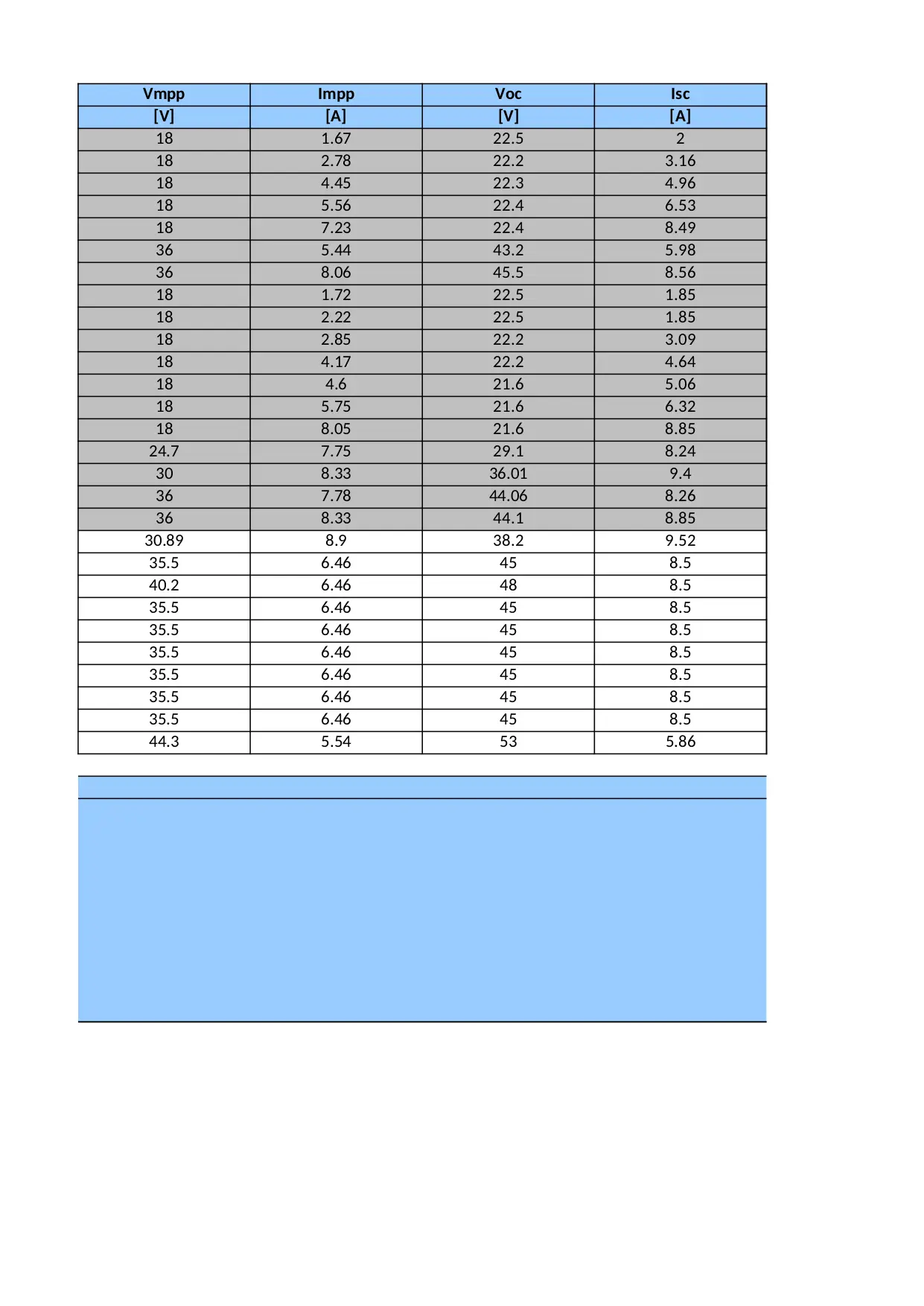

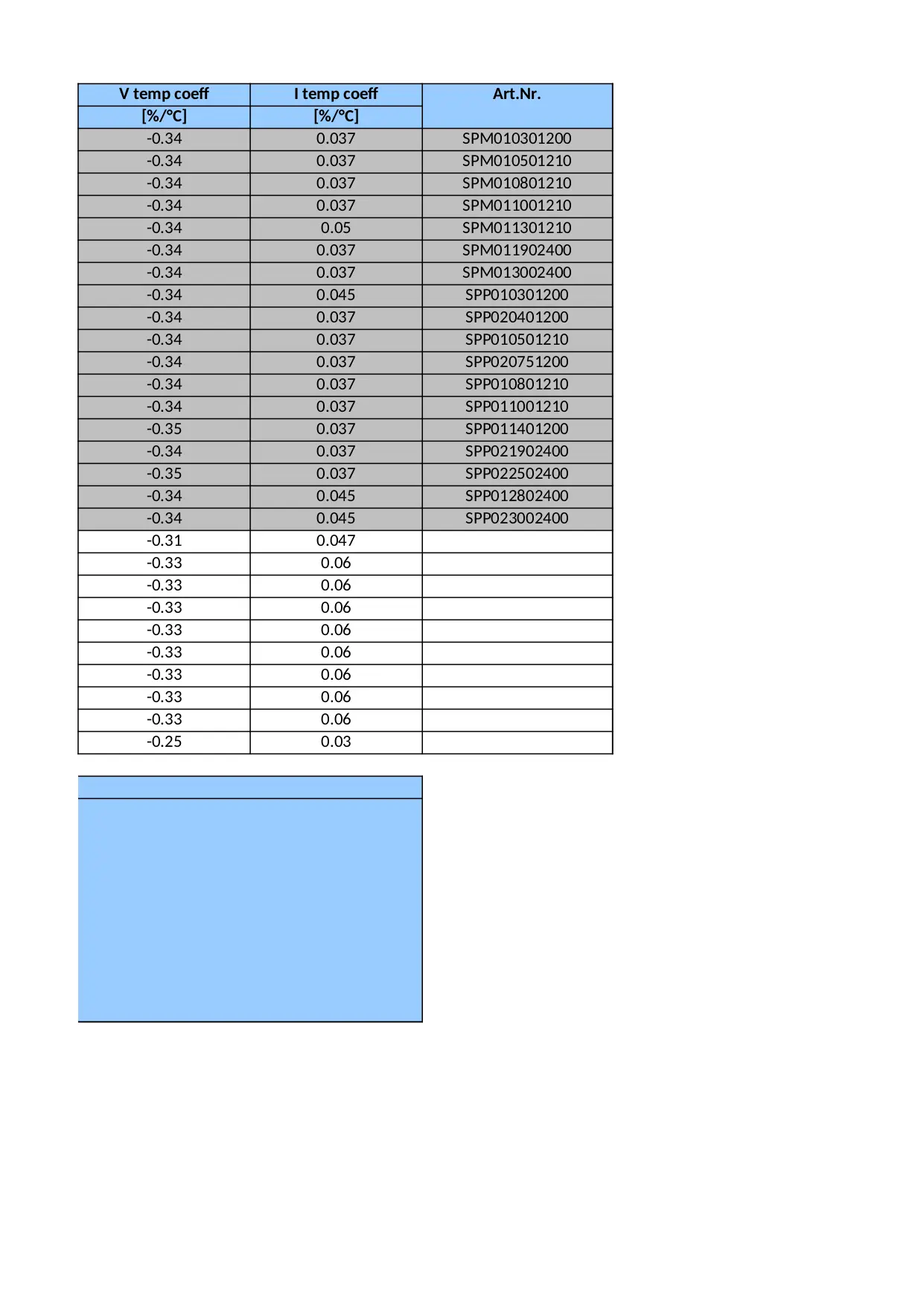

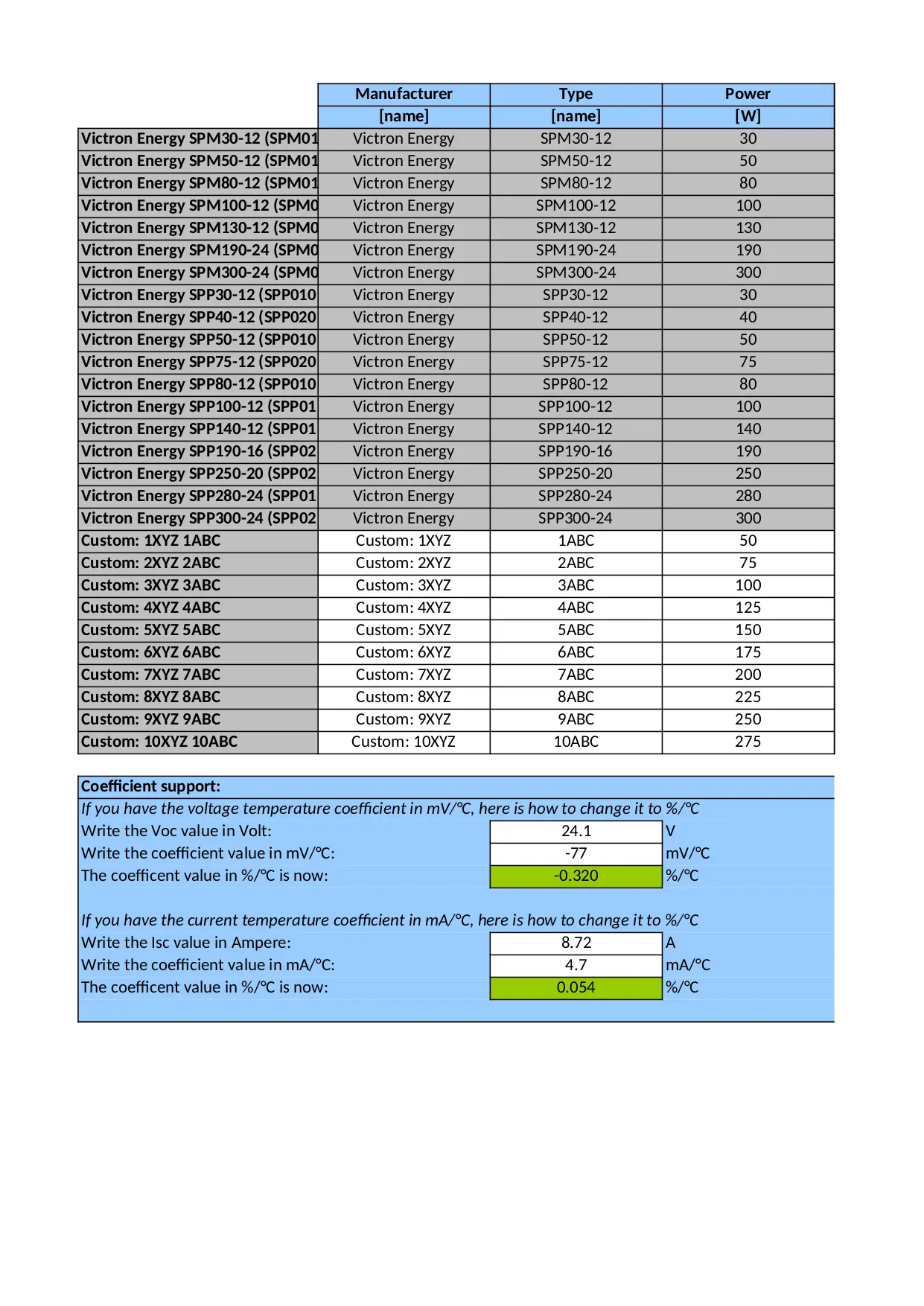

Modules
 Manufacturer Type Power Vmpp Impp Voc Isc V temp coeff I temp coeff Art.Nr.
 [name] [name] [W] [V] [A] [V] [A] [%/°C] [%/°C]
Victron Energy SPM30-12 (SPM010301200) Victron Energy SPM30-12 30.0 18.0 1.67 22.5 2.0 -0.34 0.037 SPM010301200
Victron Energy SPM50-12 (SPM010501210) Victron Energy SPM50-12 50.0 18.0 2.78 22.2 3.16 -0.34 0.037 SPM010501210
Victron Energy SPM80-12 (SPM010801210) Victron Energy SPM80-12 80.0 18.0 4.45 22.3 4.96 -0.34 0.037 SPM010801210
Victron Energy SPM100-12 (SPM011001210) Victron Energy SPM100-12 100.0 18.0 5.56 22.4 6.53 -0.34 0.037 SPM011001210
Victron Energy SPM130-12 (SPM011301210) Victron Energy SPM130-12 130.0 18.0 7.23 22.4 8.49 -0.34 0.05 SPM011301210
Victron Energy SPM190-24 (SPM011902400) Victron Energy SPM190-24 190.0 36.0 5.44 43.2 5.98 -0.34 0.037 SPM011902400
Victron Energy SPM300-24 (SPM013002400) Victron Energy SPM300-24 300.0 36.0 8.06 45.5 8.56 -0.34 0.037 SPM013002400
Victron Energy SPP30-12 (SPP010301200) Victron Energy SPP30-12 30.0 18.0 1.72 22.5 1.85 -0.34 0.045 SPP010301200
Victron Energy SPP40-12 (SPP020401200) Victron Energy SPP40-12 40.0 18.0 2.22 22.5 1.85 -0.34 0.037 SPP020401200
Victron Energy SPP50-12 (SPP010501210) Victron Energy SPP50-12 50.0 18.0 2.85 22.2 3.09 -0.34 0.037 SPP010501210
Victron Energy SPP75-12 (SPP020751200) Victron Energy SPP75-12 75.0 18.0 4.17 22.2 4.64 -0.34 0.037 SPP020751200
Victron Energy SPP80-12 (SPP010801210) Victron Energy SPP80-12 80.0 18.0 4.6 21.6 5.06 -0.34 0.037 SPP010801210
Victron Energy SPP100-12 (SPP011001210) Victron Energy SPP100-12 100.0 18.0 5.75 21.6 6.32 -0.34 0.037 SPP011001210
Victron Energy SPP140-12 (SPP011401200) Victron Energy SPP140-12 140.0 18.0 8.05 21.6 8.85 -0.35 0.037 SPP011401200
Victron Energy SPP190-16 (SPP021902400) Victron Energy SPP190-16 190.0 24.7 7.75 29.1 8.24 -0.34 0.037 SPP021902400
Victron Energy SPP250-20 (SPP022502400) Victron Energy SPP250-20 250.0 30.0 8.33 36.01 9.4 -0.35 0.037 SPP022502400
Victron Energy SPP280-24 (SPP012802400) Victron Energy SPP280-24 280.0 36.0 7.78 44.06 8.26 -0.34 0.045 SPP012802400
Victron Energy SPP300-24 (SPP023002400) Victron Energy SPP300-24 300.0 36.0 8.33 44.1 8.85 -0.34 0.045 SPP023002400
Custom: 1XYZ 1ABC Custom: 1XYZ 1ABC 50.0 30.89 8.9 38.2 9.52 -0.31 0.047
Custom: 2XYZ 2ABC Custom: 2XYZ 2ABC 75.0 35.5 6.46 45.0 8.5 -0.33 0.06
Custom: 3XYZ 3ABC Custom: 3XYZ 3ABC 100.0 40.2 6.46 48.0 8.5 -0.33 0.06
Custom: 4XYZ 4ABC Custom: 4XYZ 4ABC 125.0 35.5 6.46 45.0 8.5 -0.33 0.06
Custom: 5XYZ 5ABC Custom: 5XYZ 5ABC 150.0 35.5 6.46 45.0 8.5 -0.33 0.06
Custom: 6XYZ 6ABC Custom: 6XYZ 6ABC 175.0 35.5 6.46 45.0 8.5 -0.33 0.06
Custom: 7XYZ 7ABC Custom: 7XYZ 7ABC 200.0 35.5 6.46 45.0 8.5 -0.33 0.06
Custom: 8XYZ 8ABC Custom: 8XYZ 8ABC 225.0 35.5 6.46 45.0 8.5 -0.33 0.06
Custom: 9XYZ 9ABC Custom: 9XYZ 9ABC 250.0 35.5 6.46 45.0 8.5 -0.33 0.06
Custom: 10XYZ 10ABC Custom: 10XYZ 10ABC 275.0 44.3 5.54 53.0 5.86 -0.25 0.03
Coefficient support:
If you have the voltage temperature coefficient in mV/°C  here is how to change it to %/°C
Write the Voc value in Volt:  24.1 V
Write the coefficient value in mV/°C:  -77.0 mV/°C
The coefficent value in %/°C is now:  -0.31950207468879666 %/°C
If you have the current temperature coefficient in mA/°C  here is how to change it to %/°C
Write the Isc value in Ampere:  8.72 A
Write the coefficient value in mA/°C:  4.7 mA/°C
The coefficent value in %/°C is now:  0.05389908256880734 %/°C

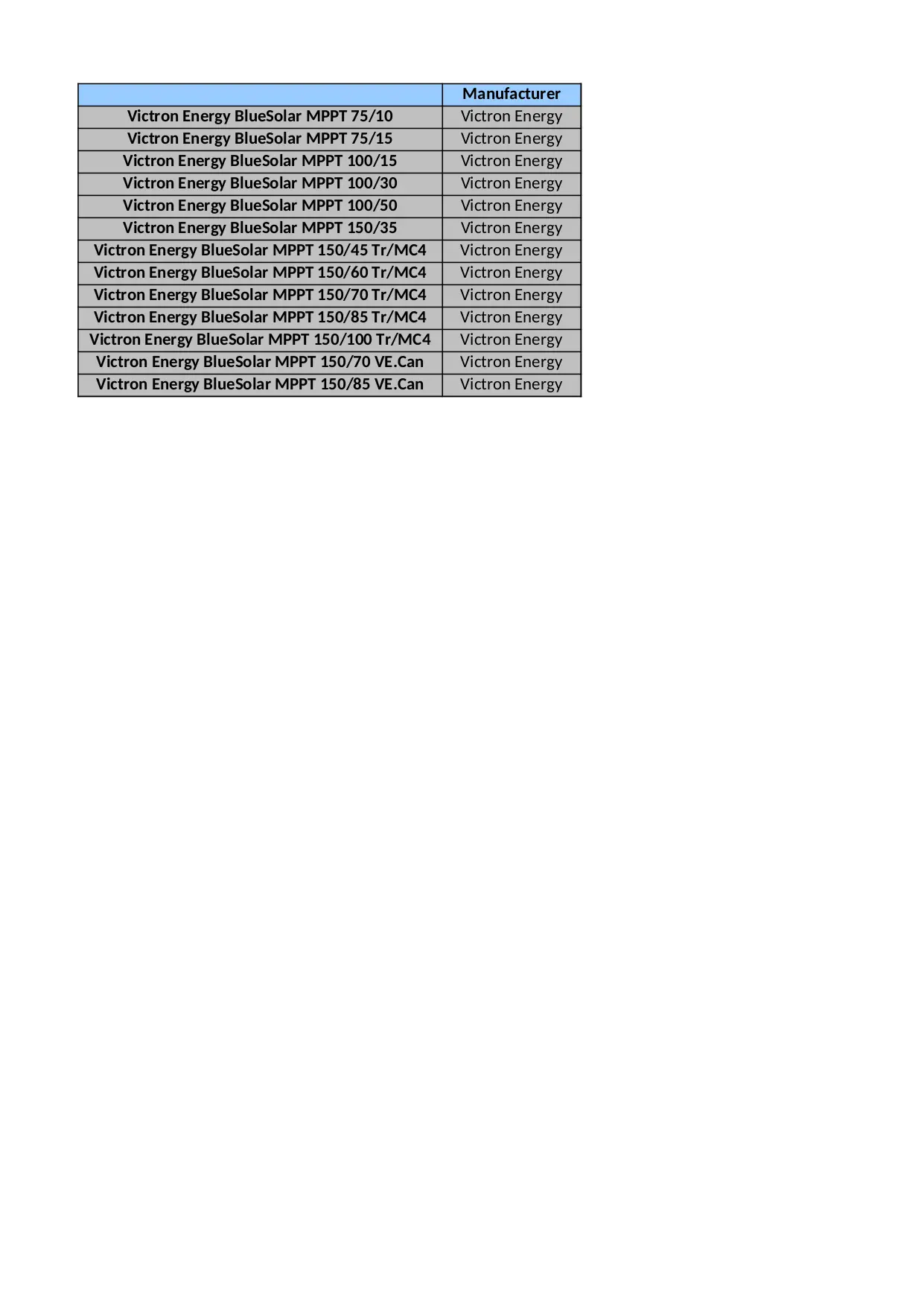

Regulator
 Manufacturer Type Power @ 12V Power @ 24V Power @ 36V Power @ 48V Voc max Voc min Vmpp min System Voltage    Ibat max Efficiency@12 Efficiency@24 Efficiency@36 Efficiency@48
Victron Energy BlueSolar MPPT 75/10 Victron Energy BlueSolar MPPT 75/10 135.0 270.0 0.0 0.0 75.0 5.0 1.0 12.0 24.0 N.A. N.A. 10.0 0.98 0.98 0.0 0.0
Victron Energy BlueSolar MPPT 75/15 Victron Energy BlueSolar MPPT 75/15 200.0 400.0 0.0 0.0 75.0 5.0 1.0 12.0 24.0 N.A. N.A. 15.0 0.98 0.98 0.0 0.0
Victron Energy BlueSolar MPPT 100/15 Victron Energy BlueSolar MPPT 100/15 200.0 400.0 0.0 0.0 100.0 5.0 1.0 12.0 24.0 N.A. N.A. 15.0 0.98 0.98 0.0 0.0
Victron Energy BlueSolar MPPT 100/30 Victron Energy BlueSolar MPPT 100/30 440.0 880.0 0.0 0.0 100.0 5.0 1.0 12.0 24.0 N.A. N.A. 30.0 0.98 0.98 0.0 0.0
Victron Energy BlueSolar MPPT 100/50 Victron Energy BlueSolar MPPT 100/50 700.0 1400.0 0.0 0.0 100.0 5.0 1.0 12.0 24.0 N.A. N.A. 50.0 0.98 0.98 0.0 0.0
Victron Energy BlueSolar MPPT 150/35 Victron Energy BlueSolar MPPT 150/35 500.0 1000.0 1500.0 2000.0 150.0 5.0 1.0 12.0 24.0 36.0 48.0 35.0 0.98 0.98 0.98 0.98
Victron Energy BlueSolar MPPT 150/45 Tr/MC4 Victron Energy BlueSolar MPPT 150/45 Tr/MC4 650.0 1300.0  2600.0 150.0 5.0 1.0 12.0 24.0 36.0 48.0 45.0 0.98 0.98 0.98 0.98
Victron Energy BlueSolar MPPT 150/60 Tr/MC4 Victron Energy BlueSolar MPPT 150/60 Tr/MC4 860.0 1720.0  3440.0 150.0 5.0 1.0 12.0 24.0 36.0 48.0 60.0 0.98 0.98 0.98 0.98
Victron Energy BlueSolar MPPT 150/70 Tr/MC4 Victron Energy BlueSolar MPPT 150/70 Tr/MC4 1000.0 2000.0  4000.0 150.0 5.0 1.0 12.0 24.0 36.0 48.0 70.0 0.98 0.98 0.98 0.98
Victron Energy BlueSolar MPPT 150/85 Tr/MC4 Victron Energy BlueSolar MPPT 150/85 Tr/MC4 1200.0 2400.0  4900.0 150.0 5.0 1.0 12.0 24.0 36.0 48.0 85.0 0.98 0.98 0.98 0.98
Victron Energy BlueSolar MPPT 150/100 Tr/MC4 Victron Energy BlueSolar MPPT 150/100 Tr/MC4 1450.0 2900.0  5800.0 150.0 5.0 1.0 12.0 24.0 36.0 48.0 100.0 0.98 0.98 0.98 0.98
Victron Energy BlueSolar MPPT 150/70 VE.Can Victron Energy BlueSolar MPPT 150/70 VE.Can 1000.0 2000.0 3000.0 4000.0 150.0 7.0 2.0 12.0 24.0 36.0 48.0 70.0 0.95 0.965 0.97 0.975
Victron Energy BlueSolar MPPT 150/85 VE.Can Victron Energy BlueSolar MPPT 150/85 VE.Can 1200.0 2400.0 3600.0 4850.0 150.0 7.0 2.0 12.0 24.0 36.0 48.0 85.0 0.95 0.965 0.97 0.975
Calculation table
DATA:
Location: -10.0 min
 70.0 max
Module info: 132.18 Voc @25°C
 108.0 Vmpp @25°C
 57.82 Isc PV@25°C
 54.46 Impp PV @25°C
 122.53500000000001 Impp output @25°C
 -0.34 Temp. Coeff. Voc
 -0.4494120000000001 Temp. Coeff. Voc absolute
 0.045 Temp. Coeff. Isc
 0.026019 Temp. Coeff. Isc absolute
Regulator info: 150.0 Voc max 100.0 Ibat max
 53.0 Voc min 48.0 System voltage 18.0
 49.0 Vmpp min 0.98 Max. Efficiency
Voltage drop: 0.0178 Cupper resistance
 0.05933333333333333 Factor
RESULTS:
Temperature Voc max. Voc START min. Vmpp RUN min. String Voc max. String Vmpp max. String Vmpp corr.max. String Voc min. String Vmpp min. String Vmpp corr. min.
-10.0 150.0 53.0 49.0 147.90942 123.72942 120.55215945666667
-5.0 150.0 53.0 49.0 145.66236 121.48236 118.29738048666667
0.0 150.0 53.0 49.0 143.4153 119.2353 116.04260151666666
5.0 150.0 53.0 49.0 141.16824 116.98824 113.78782254666667
55.0 150.0 53.0 49.0    118.69764 94.51764 91.24003284666667
60.0 150.0 53.0 49.0    116.45058 92.27058 88.98525387666666
65.0 150.0 53.0 49.0    114.20352 90.02351999999999 86.73047490666666
70.0 150.0 53.0 49.0    111.95646 87.77646 84.47569593666667
Temperature Ibat max. Impp PV max. System Voltage Ibat max. @ Impp Ibat min. @ Impp
-10.0 100.0 53.549335 48.0 100.0
-5.0 100.0 53.67943 48.0 100.0
0.0 100.0 53.809525 48.0 100.0
5.0 100.0 53.93962 48.0 100.0
55.0 100.0 55.24057 48.0  100.0
60.0 100.0 55.370665 48.0  100.0
65.0 100.0 55.50076 48.0  100.0
70.0 100.0 55.630855000000004 48.0  99.69620683957989
Version
History
2.2 - Added the MPPT 150/85 Tr/MC4 and 150/100 Tr/MC4 & added two cable sizes 16mm² & 35mm²
2.1 - Added the Poly module with 190Wp & added the new VE.Direct MPPT's 150/45  150/60 & 150/70  small correction in cable loss voltage
2.0 - Added the MPPT 75/10 and took out the discontinued 75/50
1.9 - Added new solar modules  and now 10 additional modules can be added instead of 3.
1.8 - Added a small calculation on the 'Modules' TAB  to help when temperature coefficiences are not in %/°C or %/°K but in mV/°C or mA/°C
1.7 - Added new solar modules  voltage drop correction and an option to rise the cell temperature in the example list  when the solar modules do not see snow and therefor temperatures will not be so low.
1.6 - Inserted 4 new regulators and 2 more custom module.
1.5 - Inserted 4 languages @ updated not applicable (N.A.) voltages for 75/15  75/50 & 100/15.
1.4 - Changed texts and Module temperature window.
1.3 - Power reduction comment set @ highest temperature.
1.2 - Reduced output current to maximum output current at low & high temperatures. Now a system will show 'power loss' only wenn the output current exceeds the max. at low & high temperatures.
1.1 - Inserted BlueSolar MPPT 100/15. Inserted custom module
1.0 - First version
Language
 V
Pos. ENGLISH DUTCH ESPANGOL DEUTSCH FRANCAIS
1.0 Module: Paneel: Módulo FV: Modul: Panneau:
2.0 In series: In serie: Cuantos módulos? En Serie: In Reihe: En serie:
3.0 Parallel: Parallel: En paralelo: Parallel: Parallèle:
4.0 Total PV power @STC: Totale PV vermogen @STC: Potencia total FV @STC: PV Leistung insgesamt @STC: Puissance PV totale @STC:
5.0 Wp Wp Wp Wp Wc
6.0 Module temperature: Paneel temperatuur: Temp. módulo FV Modul Temperatur: Température Paneau:
7.0 Min. Min. Min. Min. Min.
8.0 Max. Max. Max. Max. Max.
9.0 Controller: Regelaar: Reguladorr: Regler: Régulateur:
10.0 System voltage: Systeem spanning: Voltaje del sistema: System Spannung: Tension du système:
11.0 Max. input voltage Max. ingangsspanning Voltaje max. de entrada Max. Eingangspannung: Tension d'entrée max.:
12.0 Max. PV voltage @ min. temperature Max. PV spanning @ min. temp. Voltaje max. FV @ Temperatura min. Max. PV Spannung @ min. Temp. PV tension max. @ temp. min.
13.0 Min. input voltage @ MPP Min. ingangsspanning @ MPP Voltaje min. de entrada  @ PMP Min. Eingangspannung @ MPP Tension d'entrée min. @ MPP
14.0 Min. PV voltage @ max. temperature Min. PV spanning @ max. Temp. Voltaje min. FV @ Temperatura max. Min. PV Spannung @ max. Temp. PV tension min. @ temp. max.
15.0 Max. output current Max. uitgangsstroom Corriente max. de salida Max. Ausgangstrom Courant de sortie max.
16.0 Max. current @ MPP min. temp. Max. stroom @ MPP min. temp. Corriente max. @ PMP temp. min. Max. Strom @ MPP min. Temp. Courant max. @ MPP temp. min.
17.0 Max. current @ MPP max. temp. Max. stroom @ MPP max. temp. Corriente max. @ PMP temp. max. Max. Strom @ MPP max. Temp. Courant max. @ MPP temp. max.
18.0 Solar module configuration Zonne-paneel configuratie Configuración del módulo FV Solar Modul Auslegung Configuration du panneau
19.0 Example locations with expected temperatures: Voorbeeld lokaties en verwachte temperatuur: Ejemplos de lugares con temperaturas previstas: Beispiel Standort und erwartete Temperatur: Exemple de localisation de site avec la température attendue:
20.0 Flat on mobile home  all year (poor ventilation) Vlak op camper  gehele jaar (slechte ventilatie) Plano sobre una autocaravana  durante todo el año (mala ventilación) Flach auf Wohnmobil  ganze Jahr (schlechte Hinterlüftung) À plat sur toit de camping-car  toute l'année (mauvaise ventilation)
21.0 Flat on mobile home  only summer (poor ventilation) Vlak op camper  alleen zomers (slechte ventilatie) Plano sobre una autocaravana  sólo en verano (mala ventilación) Flach auf Wohnmobil  nur Sommer (schlechte Hinterlüftung) À plat sur camping-car   seulement l'été (mauvaise ventilation)
22.0 Flat on boat (poor ventilation) Vlak op boot (slechte ventilatie) Plano sobre el techo de un barco (mala ventilación) Flach auf Boot (schlechte Hinterlüftung) À plat sur le bateau (mauvaise ventilation)
23.0 Pitched on boat (good ventilation) Onder helling op boot (goede ventilatie) Inclinado sobre el techo de un barco (buena ventilación) Geneigt auf Boot (gute Hinterlüftung) Inclinée sur bateau (bonne ventilation)
24.0 Pitched roof in warm region (good ventilation) Op schuin dak warme omgeving (goede ventilatie) Techo inclinado en una región cálida (buena ventilación) Schrägdach  warme Umgebung (gute Hinterlüftung) Toit en pente  en région chaude (bonne ventilation)
25.0 Pitched roof in average region (good ventilation) Op schuin dak gemiddelde omgeving (goede ventilatie) Techo inclinado en una región templada (buena ventilación) Schrägdach  mittlere Regio (gute Hinterlüftung) Toit en pente  région tempérée (bonne ventilation)
26.0 Pitched roof on mountain (good ventilation) Op schuin dak in de bergen (goede ventilatie) Techo inclinado en las montañas (buena ventilación) Schrägdach  in Bergen (gute Hinterlüftung) Toit en pente  en montagne (bonne ventilation)
27.0 * Power limiting @ low temp. * Vermogens begrenzing @ lage temp. * Reducción de potencia @ Temp. baja * Leistung Begrenzung @ niedrige Temp. * Limitation de puissance @ basse temp.
28.0 ** Power limiting @ high temp. ** Vermogens begrenzing @ hoge temp. ** Reducción de potencia @ Temp. alta ** Leistung Begrenzung @ hohe Temp. ** Limitation de puissance @ haute temp.
29.0 Input voltage window Ingangspanning venster Ventana de voltaje Eingangspannungsfenster Fourchette de tension
30.0 Charge current window Laadstroom venster Ventana de corriente Ladestromfenster Fourchette de courant
31.0 Cable length  Module to MPPT * Kabel lengte  paneel tot MPPT * Largo de cable entre modulo y MPPT * Kabel Länge  Modul zum MPPT * Longueur cable  Paneaux à MPPT *
32.0 Cross-section: Doorsnede: Sección: Querschnitt: Section:
33.0 * One way length * Enkele afstand * Longitud de un solo cable * Einfache Distanz * La distance simple
34.0 Are the solar modules covered with snow many periods a year? Zijn de panelen gedurende veel periodes bedekt met sneeuw? ¿Los módulos están cubiertos con nieve durante muchos períodos del año? Sind die Solar Module öfters im Jahr bedeckt mit Schnee? Les panneaux PV sont-ils souvent couverts de neige ?
35.0 Yes Ja Si Ja Oui
36.0 No Nee No Nein Non
37.0 Accepted Toegestaan Aceptado Erlaubt Accepté
38.0 NOT accepted NIET toegestaan NO aceptado NICHT erlaubt PAS accepté
